Bathtubs freestanding
– Patricia Urquiola, 2015
Bathtub in white or two-tone Solid surface (exterior in dark grey RAL7021 or light grey RAL7044) and support structure in tubular stainless steel coated in mat white (RAL9003), mat black (RAL9005) or mat light grey (RAL7044) or brushed burnished finishes. The bathtub comes with chrome waste with built-in overflow system .MET0722S (.MET0434 for bathtubs on view). Without tap holes, taps can be installed on the wall or floor.
Note: For an easier installation of the bathtubs we recommend to use the template for the positioning of the waste trap AKITPZVAS. The bathtub and the structure can also be supplied with colours requested by the client, with a surcharge of 15%; for the bathtub on the price of the two-coloured finish, for the structure on the cost of the white finish. Different finishes of the structure are possible too, with price to be calculated.
Code - AVAS1079_
Family - Cuna
Typology - freestanding
Category - Bathtubs
Designer - Patricia Urquiola
Year - 2015
Height - 52 cm - 20" 15/32 inches
Width - 165.5 cm - 65" 5/32 inches
Weight - 33 kg - 73 lbs
Depth - 78.5 cm - 30" 29/32 inches
Capacity - 220 l - 58 gal
Packaging - 89 x 175 x 78 cm - 35" 3/64 x 68" 7/8 x 30" 3/4 inches
Total weight - 69 kg - 152 lbs
solid surface
Stainless steel
Light grey (RAL7044)
Brushed burnished
Matt black painted
Matt white/dark grey
Matt white/light grey
Matt white painted
White
The Best Bath & Materials Design, EDIDA China Award 2016

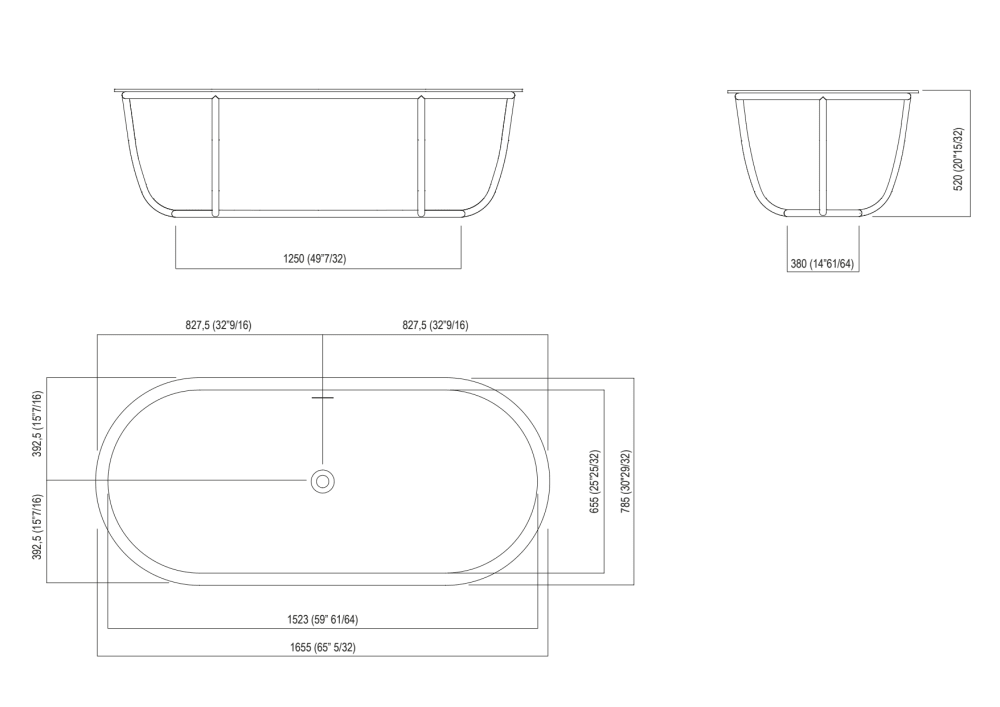

Dimensions for recess

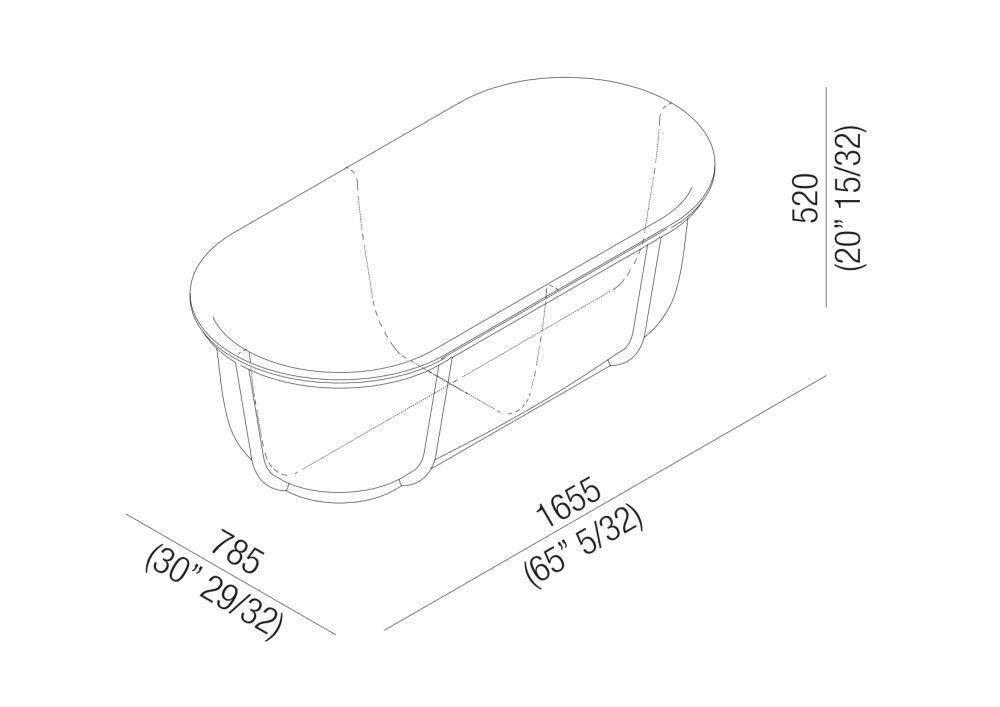

Main dimensions
Dimensions for wall mounted taps
Dimensions for freestanding spouts
Notes
