Agape Bathrooms

Back to Vieques XS Bathtubs

Download Data Sheet Download Technical Specification Sheet

Vieques XS - AVAS0912_

Bathtubs freestanding
– Patricia Urquiola, 2013

Oval steel bathtub painted white (RAL9003) with dark grey (RAL7021) or light grey (RAL7044) exterior. With external overflow system painted white. Available in two measures: Vieques (cm 171, h cm 62,5 - 67” 3/8, h 24” 5/8) and Vieques XS (cm 155, h cm 67,5 - 59” 1/2, h 26” 5/8). Backrest and shelf in iroko wood available as accessories, to be installed on bathtub edge. The two-coloured model can be made in a colour chosen by the client, price to be calculated. The bath must be fitted with waste trap .MET0433WU (.MET0434 for bathtubs on display).

AVAS0912_

Information

Code - AVAS0912_

Family - Vieques XS

Typology - freestanding

Category - Bathtubs

Collection - Vieques

Designer - Patricia Urquiola

Year - 2013

Main Measurements

Height - 67.5 cm - 26" 5/8 inches

Length - 150 cm - 59" 1/2 inches

Weight - 65 kg - 143 lbs

Depth - 72.6 cm - 28" 5/8 inches

Capacity - 320 l - 85 gal

Packaging - 87 x 165 x 70 cm - 34" 1/4 x 65" x 27" 1/2 inches

Total weight - 88 kg - 195 lbs

Download

Technical Specification Sheet (pdf)

Assembly Instructions (pdf)

Materials

Steel

Steel

Finishes

White

White

White/dark grey

White/dark grey

White/light grey

White/light grey

Technical details

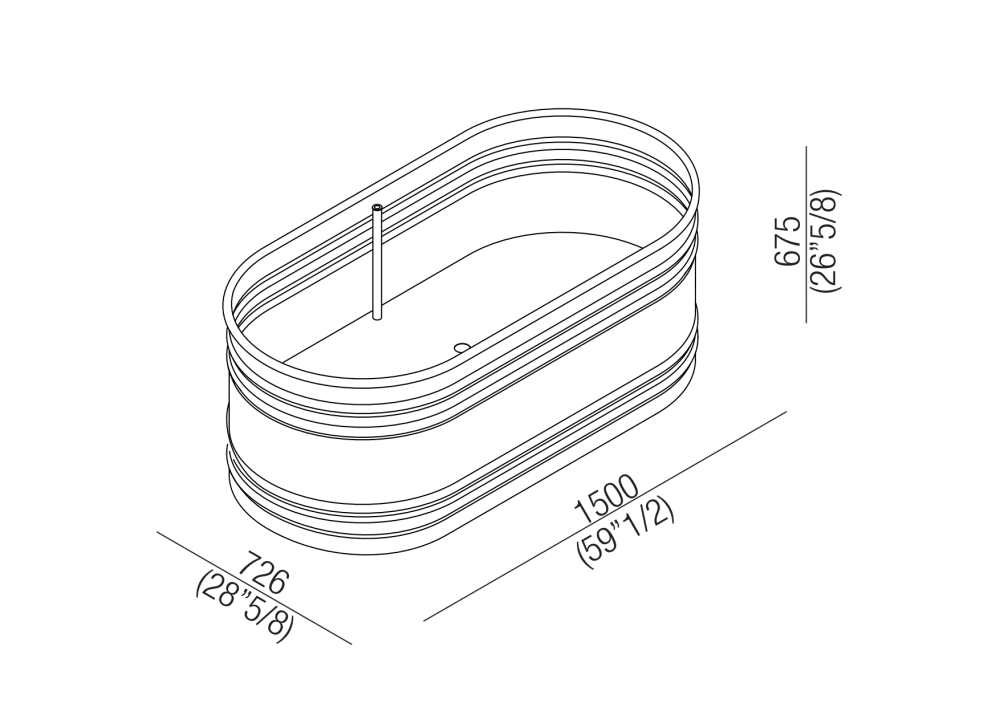

Main dimensions

Main dimensions<br>

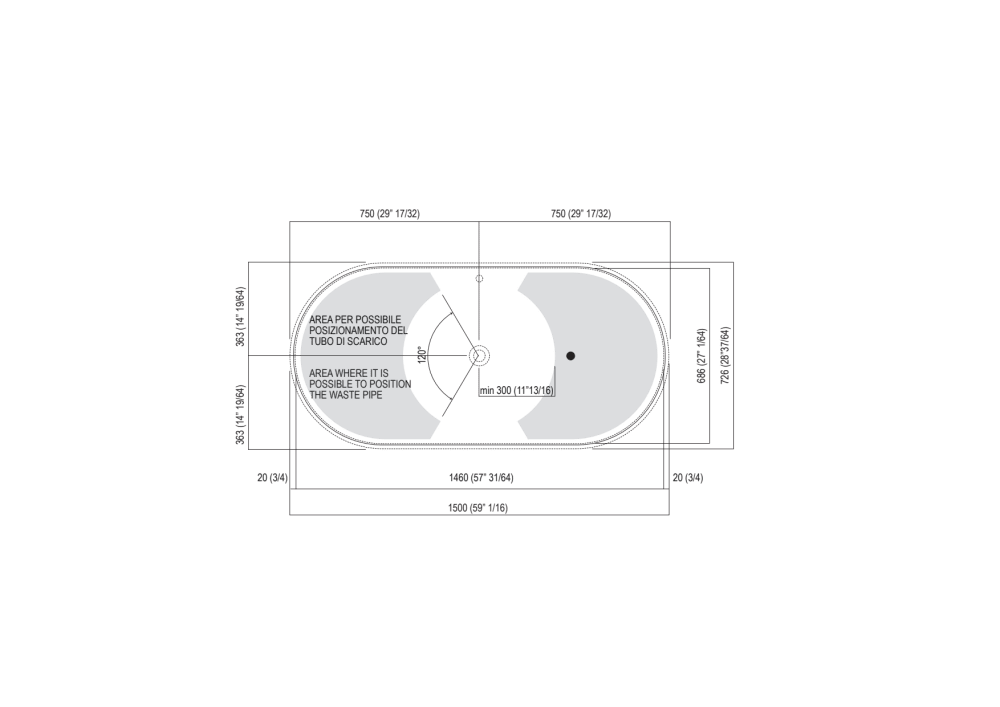

Drain pipe position

Drain pipe position <br><br>

Dimensions for wall mounted taps

Dimensions for wall mounted taps<br>

Dimensions for freestanding spouts

Dimensions for freestanding spouts<br>

Note

Note
