Agape Bathrooms

Immersion - ACER0708P_

Washbasins over countertop
Neri&Hu, 2018


Countertop washbasin in white or two-coloured Cristalplant® biobased (soft touch exterior in dark grey RAL7021 or light grey RAL7044), without tap hole, no overflow. The washbasin is fitted with a white Cristalplant® biobased waste with cap flush aligned with the inner surface of the washbasin. (.MET0723)


ACER0708P_

Information

Code - ACER0708P_

Family - Immersion

Typology - over countertop

Category - Washbasins

Collection - Marmi e Pietre

Designer - Neri&Hu

Year - 2018

Main Measurements

Height - 17 cm - 6" 11/16 inches

Length - 60 cm - 23" 5/8 inches

Weight - 9 kg - 20 lbs

Depth - 40 cm - 15" 3/4 inches

Packaging - 52 x 75 x 23 cm - 20" 1/2 x 29" 1/2 x 9'' inches

Total weight - 14 kg - 31 lbs



Materials

Cristalplant® biobased

Cristalplant® biobased

Marble

Marble

Finishes

White/dark grey

White/dark grey

White/light grey

White/light grey

White Carrara

White Carrara

Black Marquina

Black Marquina

Grey Carnico

Grey Carnico

Green Alpi

Green Alpi

Dark Emperador

Dark Emperador

Petit Granit

Petit Granit

Travertine

Travertine



Awards and acknowledgments

NYCxDESIGN Award 2020 in the “Bath Fixtures” category

NYCxDESIGN Award 2020 in the “Bath Fixtures” category



Technical details

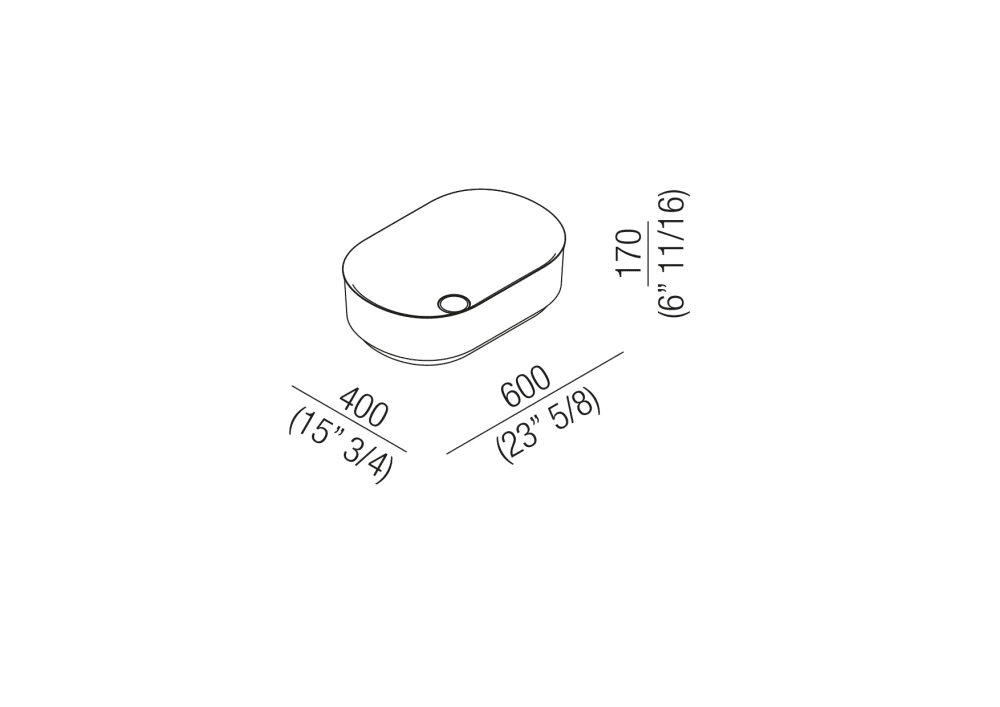

Main dimensions

Main dimensions

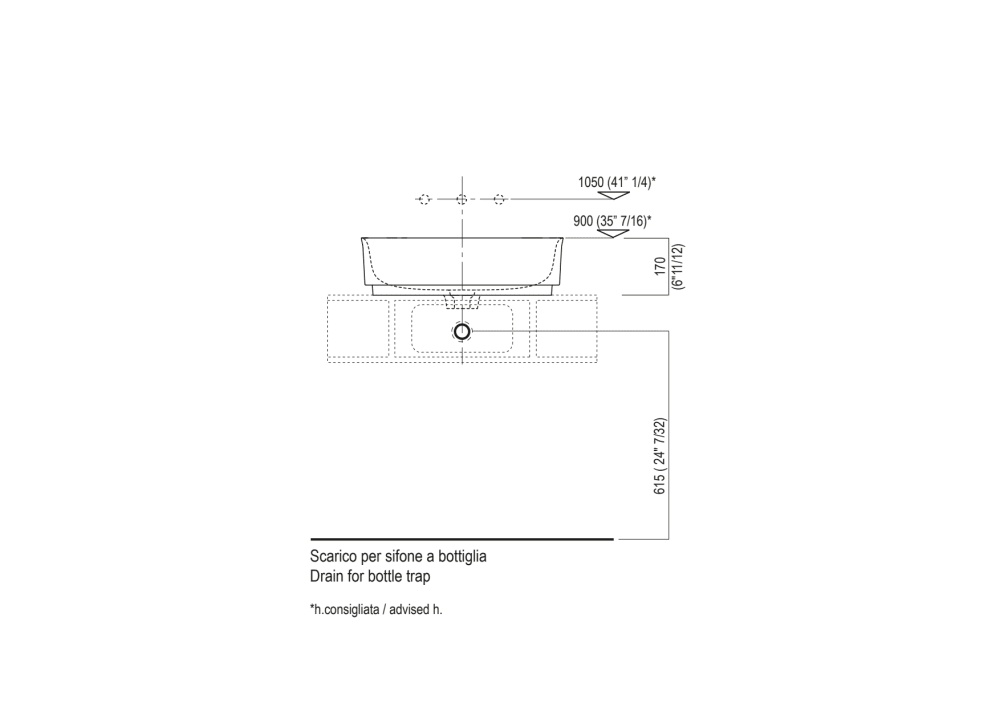

Installation notes: on self-bearing countertop

Installation notes: on self-bearing countertop

Installation notes: on countertop to be resede on cabinets

Installation notes: on countertop to be resede on cabinets

Installation notes: on casing H 40 cm Lato

Installation notes: on casing H 40 cm Lato

Installation notes: on casing H 20 cm Lato

Installation notes: on casing H 20 cm Lato

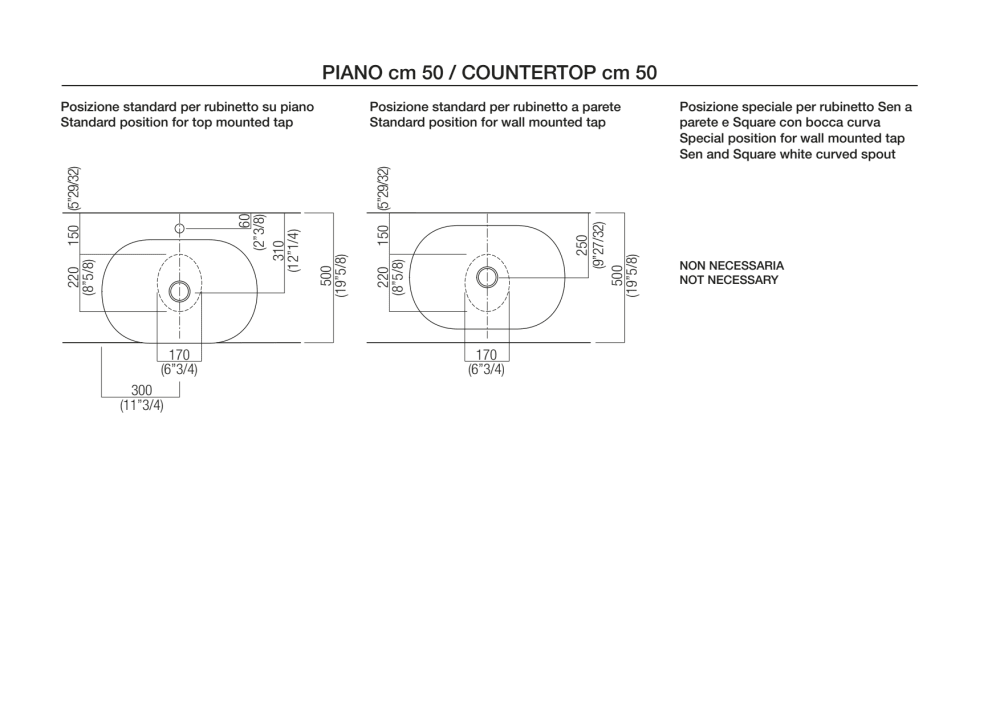

Holes for countertop washbasins and top mounted taps for top

Holes for countertop washbasins and top mounted taps for top

Tap position, recommended height

<div>Tap position, recommended height</div><div><br></div>
